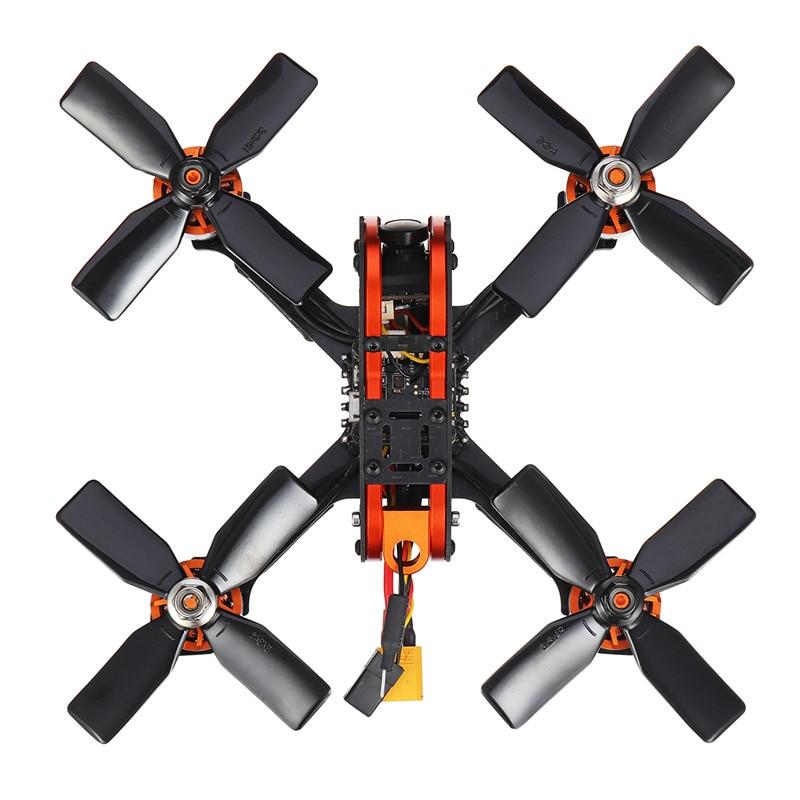

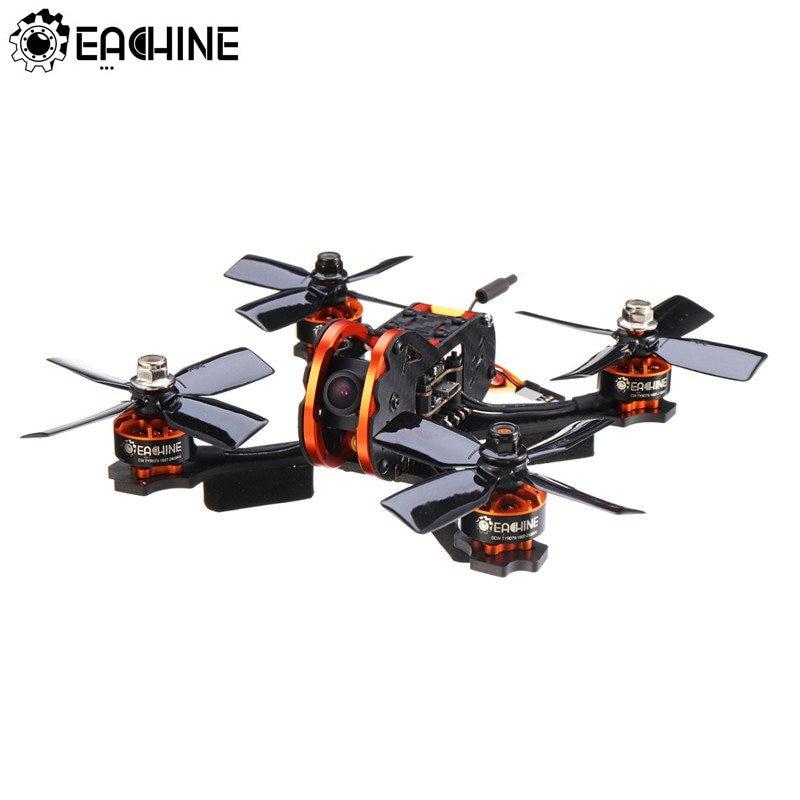

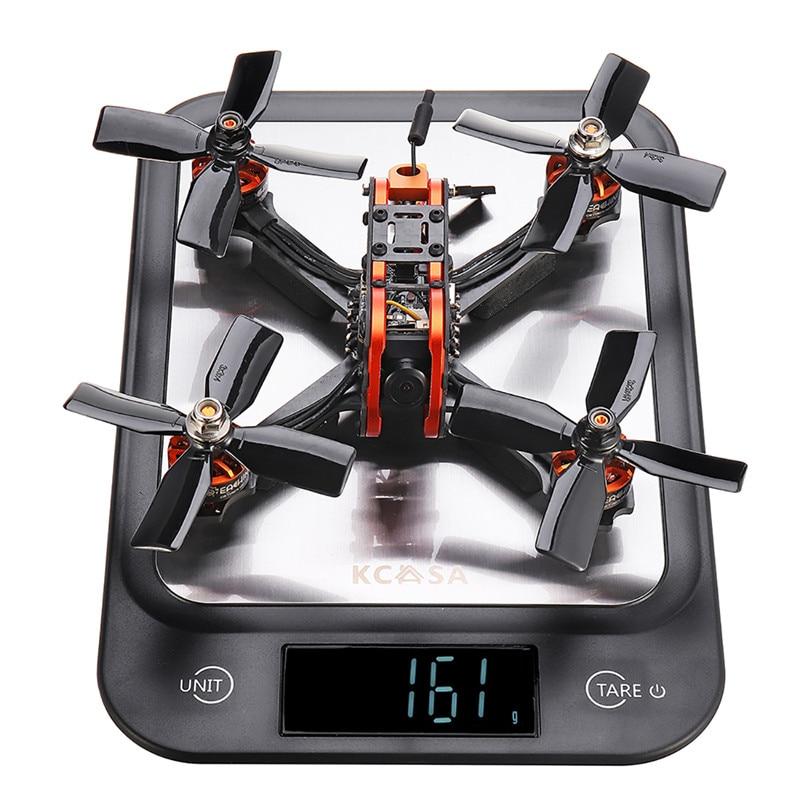

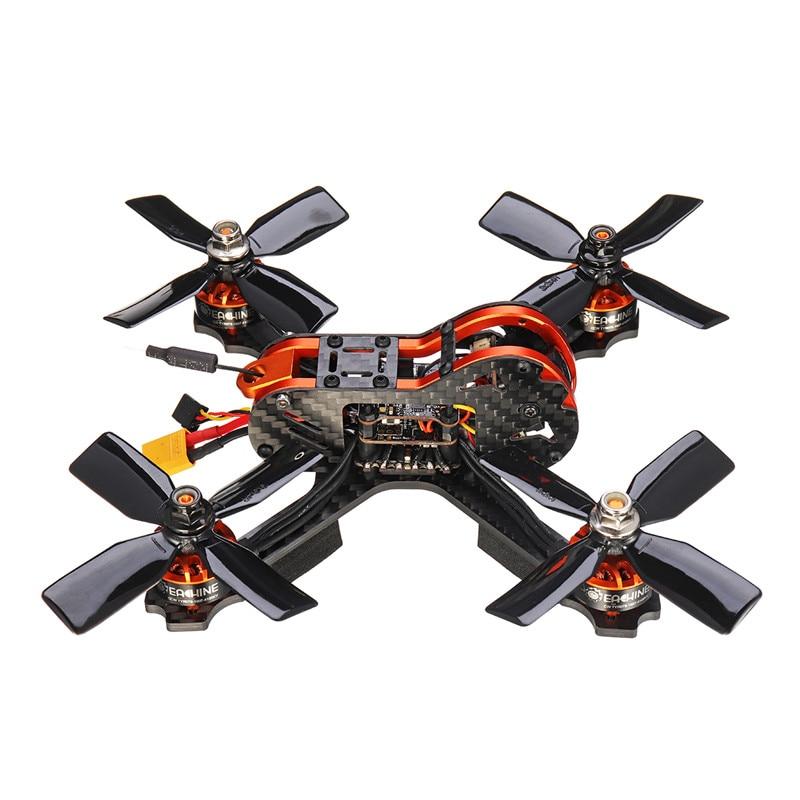

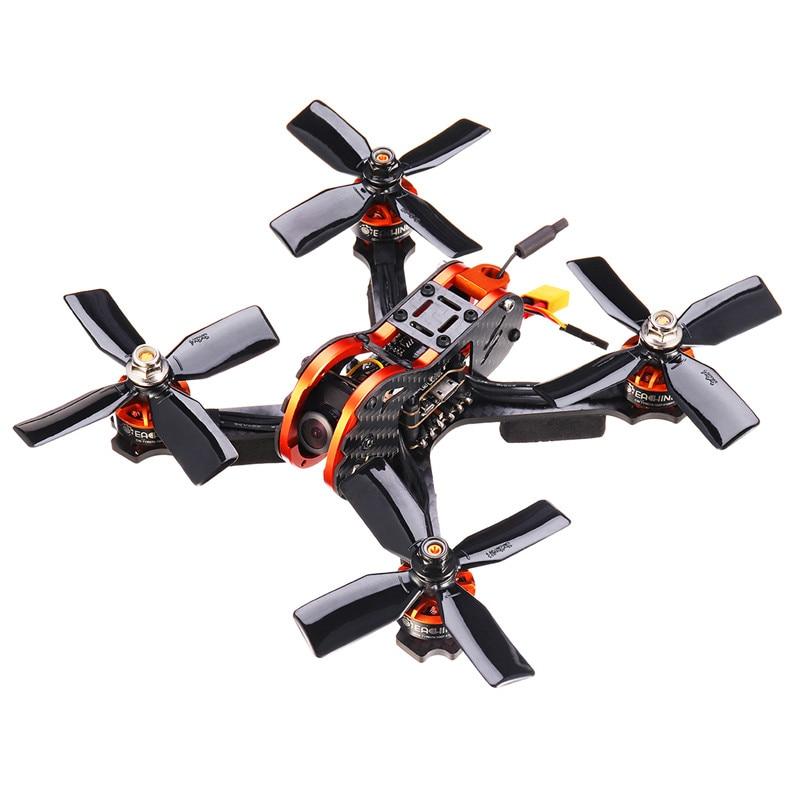

Name: Aerialyn | Foldable FPV Racing Drone, Sleek & Durable | Lersk
Brand: '-lersk
SKU: Lersk536061104622911
Price: 163.00 GBP
Availability: InStock

Aerialyn is a Foldable FPV Racing Drone built for speed, durability, and ease of use. Its foldable design keeps your kit compact without sacrificing strength, making it perfect for field sessions and on-the-go flights. This sleek drone blends power with user-friendly controls in a single, affordable package.

Key features

Ultra-lightweight and portable: Only 17.8 g (including wires) with a 140 mm wheelbase frame kit for agile handling.
Durable construction: 3K carbon fiber frame combined with CNC 6065 aluminum parts for lasting performance.
High-performance powertrain: 1607 2800KV brushless motors compatible with 2-4S LiPo packs, delivering strong acceleration and torque.
Efficient ESCs: 4-in-1 20A BLHeli_S ESC with peak current up to 25A (10S), no BEC, designed for reliable power delivery.
Advanced flight controller: Custom flight stack with main control chip STM32F411, 32 kHz PID refresh, and support for Betaflight/cleanflight/inav firmware.

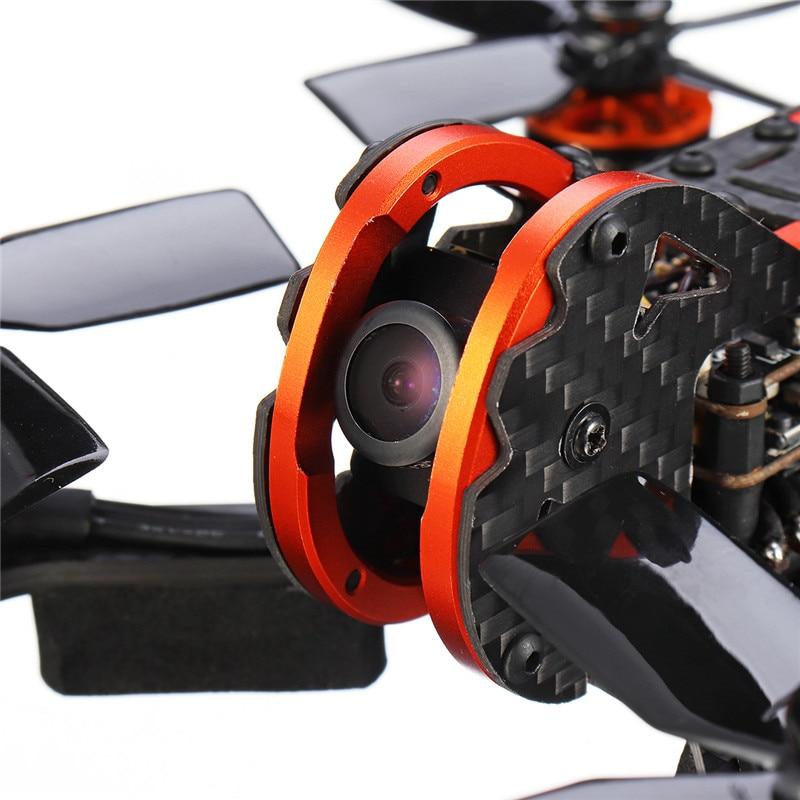

Integrated video system: 700TVL CMOS camera with standard 2.1 mm lens; PAL/NTSC switchable and 1.0 Vp-p video output for clear, actionable FPV feed.
Compact mounting and integration: 140 mm frame with 12x12 mm motor mounting holes and 20x20 mm flight controller mounting pattern; propeller recommendation is 3 inches.
Flight-ready specs: 9N/12P configuration, excellent compatibility with Dshot600/BLHeli_S/Oneshot125 protocols, and robust operating range.

Technical specifications

Frame: 140 mm wheelbase; arm thickness 3 mm; upper plate 1 mm; side plate 1 mm; frame kit material: 3K carbon fiber & CNC 6065 aluminum.
Motors: 1607 2800KV brushless motors; Lipo cell compatibility: 2-4S; weight: 17.8 g (includes wires).
Maximum thrust: 630 g (with 4S and 3030 4-blade propeller).
Maximum power: 350 W.
Configuration: 9N/12P; mounting holes distance: 12×12 mm; mounting holes: φM2.
Flight controller weight: 24 g; main control chip: STM32F411; sensor: ICM20602 (6-axis); integrated OSD.
Video system: 700TVL camera; case size: 19×19 mm; camera weight: 9.5 g; PAL/NTSC switchable; resolution: PAL 1020×596, NTSC 1020×508 (approx. 0.61 MP and 0.52 MP respectively).
Lens: 2.1 mm; lens operating voltage: DC 5-12 V; working current: 70 mA; operating temperature: -20°C to -60°C; humidity: 0% to 98%.
Video output: 1.0 Vp-p/75 Ω; exposure: electron exposure; electronic shutter: 1/50(1/60) - 1/100000 s; gamma correction: 0.45/1.0; synchronization: inter-sync.
Firmware and controls: supports Betaflight/cleanflight/inav; 32 kHz PID refresh; supports Dshot600/BLHeli_S/Oneshot125.

Item	Specification
140mm Racing Frame Kit	Wheel base: 140mm Frame arm thickness: 3mm Upper plate thickness: 1mm Side plate thickness: 1mm Frame kit material: 3K carbon fiber & CNC 6065 aluminium
1607 2800KV 2-4S Brushless Motor	KV: 2800KV Lipo cell: 2-4S Weight: 17.8g (includes wires) Output shaft length: 14mm Maximum pull: signal 630g (4S 3030 4-blade propeller) Maximum power: 350W Configu-ration: 9N/12P Mounting holes distance: 12*12mm Mounting holes: φM2 Bearing: NSK N52 Strong NdFeB Magnet Recommend propeller: 3 inch
4 IN 1 20A BLHeli_S ESC	Continuous current: 20A Pe ak current: 25A (10S) BEC output: no Input voltage: 2-4S Main control chip: 48mhz EFM8BB2 Firmware upgrade: Supports Dshot600/BLHeli_S/Oneshot125 MOS: 3*3 MOS type: vs3610ae 30v64a
Customized F4 Flight Controller	Main control chip: STM32F411 Sensor: ICM20602 6-axis Integrated OSD PPM/DSM/IBUS/UAR share: UART1-RX Mounting holes distance: 20*20mm Weight: 24g PID circulation rate and refresh rate can up to 32kHz Supports Betaflight/cleanflight/inav firmware
700TVL CMOS Camera	Case size: 19mm*19mm Weight: 9.5g Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP) Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP) Signal system: PAL/NTSC switchable Resolution ratio(horizontal center): 700TVL Video output: 1.0Vp-p/75Ω Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB White balance: off Exposure mode: electron exposure Electronic shutter: 1/50(1/60) - 1/100000 S Gamma correction: 0.45/1.0 Synchronization method: inter-sync Camera lens: standard 2.1mm Lens operating voltage: DC 5-12V Working current: 70mA (low power consumption) Working temperature: -20℃~-60℃ Humidity: 0%~98%
5.8G 40CH 0mW/25mw/200mw switchable VTX	Supports TBS SmartAudio Transmitting power: 0mW/25mW/100mW/200mW switchable Channel: 40CH Full video format: NTSC/PAL Input voltage: 7V~24V Power dissipation: +12V/600MW Size: 25×20×6mm Weight: ≤3.2g (except antenna) With copper pipe mini antenna (ipex antenna) Make sure the antenna is installed at the output end before powering up to avoid damaging internal components.
3030 4-blade propeller	Material: PC Mounting hole: 5mm Center thickness: 6mm Quantity: 10 pairs Color: black, red, yellow, green Weight: 5g a pair Delivery color randomly (10 pairs of propellers are the same color)
Lipo Battery	Not included \nRecommend 2-3S 450-650mah
